Volkswagen e-Golf EV charging guide

VW e-Golf charging guide

The VW e-Golf is one of the few EVs on sale that wasn’t designed specifically to be an electric model. It is clearly based on the conventional Golf, and this is often considered as a positive attribute for those looking into EV ownership but don’t want stand-out ‘futuristic’ styling inside and out.

A battery and equipment upgrade has seen the VW e-Golf become a far more attractive proposition in the EV market, with official range upped from a relatively poor 118 miles, to a class matching 186 miles.

Official WLTP Range

  • 186 miles

Real-world Range

  • 167 miles

How to charge the Volkswagen e-Golf

How to charge a VW e-Golf

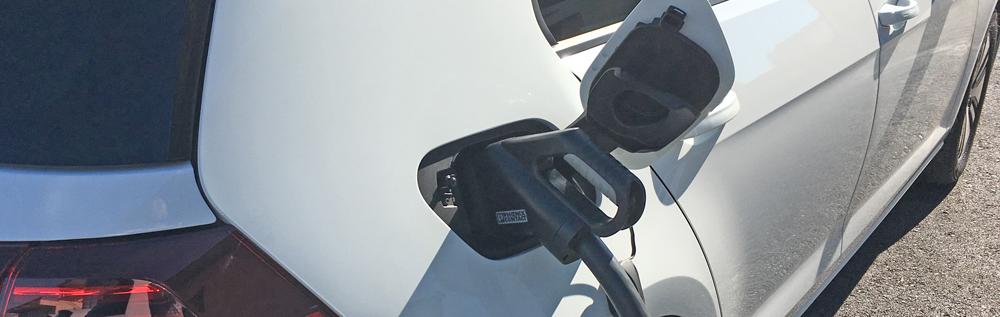

The VW e-Golf range uses the CCS charging standard, which consists of a combined AC and DC inlet port. The top portion of the inlet is for the Type 2 connector, which is used when charging at home or at public slow and fast AC points. The both the upper and lower sections on the inlet are used to carry high power during rapid DC charging. The VW e-Golf’s CCS charging inlet is found on the off-side rear 3/4 panel where you would expect to find a petrol flap.

The VW e-Golf is able to be slow, fast and rapid charged from public points, depending on the network and type of charge unit. In most cases, slow charging requires a 3-pin-to-Type 2 cable, and fast charging a Type 2-to-Type 2 cable, one of which is usually supplied with the vehicle. For rapid charging, the vehicle uses a tethered CCS connector which is part of the charging unit.

The Volkswagen e-Golf uses two charging standards for its inlets – Type 2 and CCS. The Type 2 inlet is used when charging at home or at public slow and fast AC points. The CCS inlet is used to carry high power during rapid DC charging from a CCS connector.

Charging on AC or DC requires the EV driver to plug the connectors into the correct inlet, after which the car then ‘talks’ to the charging unit to make sure there is a power supply, that there are no faults, and that it is safe to start charging. If charging at home or at a workplace charge point, the vehicle then automatically starts charging.

On a public charger, an activation process is required to initiate charging. Depending on the network provider, this may involve the use of Zap-Pay, an RFID card or a smartphone app, often linked to an account which has been set up beforehand. Contactless pay-as-you-go units are also becoming more common on newer units. Once activated, the units will conduct further connection and account checks before starting to charge the vehicle.

How long does it take to charge the Volkswagen e-Golf

How long does it take to charge a VW e-Golf?

The VW e-Golf is fitted with a 7.2 kW on-board charger for AC charging in addition to the Rapid 50 kW DC option. This means that even when connected to a fast charger with a rated output above 7.2 kW, the VW e-Golf will only be able to charge at 7.2 kW.

The following table shows approximate times to charge the Volkswagen e-Golf . We recommend charging to 80% charge in order to protect the battery and maximise efficiency.

Note that the times shown are only a guide, as very rarely will an EV need to be fully charged from 0%. Other factors that might vary the charging time include ambient temperature, in-vehicle energy loads, any upper and lower charge restrictions to extend battery life and protect against potential damage, and charging rates slowing down as the maximum charge is reached.

7kW charging to 100% in hours22kW charging to 100% in hours50kW charging to 80% in hours
550.5

Use our Home Charging Calculator to estimate charging times for the Volkswagen e-Golf . The level of battery charge, connector power rating, and on-board charger options can be tailored to your requirements for more accurate results.

How much does it cost to charge the Volkswagen e-Golf

 How much does it cost to charge a VW e-Golf?

The cost to charge the Volkswagen e-Golf is primarily driven by the cost of the electricity, which itself varies by the type of charge point and the efficiency of the motor.

Zapmap monitors the cost of charging on a monthly basis. Our charging Price Index shows the weighted average PAYG pricing, based on real charging sessions for the previous three months.

The table below shows these prices split by power rating.

Type of chargingPrice per kWh
Home charging8p /kWh
Slow/fast charging57p /kWh
Rapid/ultra-rapid charging80p /kWh

In general, home charging provides the cheapest per mile cost and public rapid charging tends to be around double the cost.

To find the cost and times to charge an EV on a public charge point, our Public Charging Calculator calculates charging costs for any new or used plug-in vehicle. The results can be personalised for different electricity costs and the level of charge required.

Charging the Volkswagen e-Golf at home

Charging a VW e-Golf at home

To find the cost and times to charge an EV on a public charge point, our Public Charging Calculator calculates charging costs for any new or used plug-in vehicle. The results can be personalised for different electricity costs and the level of charge required. Charging at home is often the most convenient and cost effective way to recharge an EV. Government grants are available to help accelerate the provision of EV charge points in flats and rented accommodation, and a large number of companies offer a fully installed charge point for a fixed price.

Most home chargers are either rated at 3 kW or 7 kW. The higher powered wall-mounted units normally cost more than the slower 3 kW option, but halve the time required to fully charge an EV. Many plug-in car manufacturers have deals or partnerships with charge point suppliers, and in some cases provide a free home charge point as part of a new car purchase. We recommend shopping about beforehand as there are a number of suitable products on the market.

Charging the Volkswagen e-Golf on the public network

Charging a VW e-Golf on public networks

The UK has a large number of public EV charging networks, with some offering national coverage and others only found in a specific region. Major charging networks include bp pulse, GeniePoint, GRIDSERVE, InstaVolt, Pod Point and ubitricity.

Payment and access methods across networks vary, with some networks taking cross-network payment solution Zap-Pay, others providing an RFID card and others a smartphone app to use their services. While most require an account to be set up before use, many rapid units now have contactless PAYG card readers.

Although some EV charge points are free to use, the majority of chargers require payment. Charging tariffs tend to comprise a flat connection fee, a cost per charging time (pence per hour) and/or a cost per energy consumed (pence per kWh). For more information about network tariffs, visit our public charge point networks guides.
