Data released today from the UK’s first-ever trial of smart metered on-street electric vehicle (EV) chargers – Agile Streets – demonstrates that smart charging at public charge points could save drivers £604.65 per year in charging costs compared to traditional ‘non-smart’ public charging – equivalent to UK-wide collective savings of over £4.1 billion a year by 2030.

The government-backed project, delivered by a number of companies including EV infrastructure specialist Connected Kerb, also shows that peak energy demand – the time of day when energy demand is greatest – would be reduced by as much as 240MW, equivalent to boiling over 1.4m kettles.

Achieving the same peak demand reduction by using lithium-ion battery storage would cost around £83m plus an annual operating cost of £1.5m. Smart charging also reduces the demand on local grid connection capacity, enabling more chargers to be installed to support the UK Government’s target of installing 300,000 public EV chargers by 2030.

The Agile Streets project saw 100 Connected Kerb on-street EV chargers deployed at 17 sites across four local authorities – Shropshire, Hackney, Glasgow and East Lothian.

Over the course of six months, 2,451 charging sessions took place, totalling 51,618 kWh of energy. These charging sessions were completed by 368 trial participants.

Drivers had the option of a smart charging ‘ECO’ mode at 19p/kWh – which would schedule charging at the lowest-cost times of day – or a ‘boost’ mode at 33p/kWh which would immediately deliver power like a normal non-smart public charger. Charging an average 62kW Nissan LEAF from 20% to 100% using ECO mode saves drivers £6.95 per session – equivalent to a 42% saving.

“The energy price crisis is a major challenge facing all industries. For the EV transition, we know that this will narrow the gap between the cost of refuelling a petrol or diesel vehicle, and the typically much lower cost of charging an EV,” said Chris Pateman-Jones, CEO of Connected Kerb.

“That’s why now is the time to focus our attention on smart charging technologies that can allow those reliant on public charging infrastructure to benefit from cheaper prices when demand for electricity is at its lowest.”

While EV ownership is skyrocketing, rising energy bills are reducing the advantage of lower running costs for EVs compared to internal combustion engine (ICE) cars. Home smart charging energy tariffs can help to keep costs down for EV drivers, making EVs 13.5p cheaper per mile compared to ICE cars even after the October price rise, thus helping to maintain the financial benefits of driving an EV.

agile streets trial: public smart ev charging saves drivers £600 a year

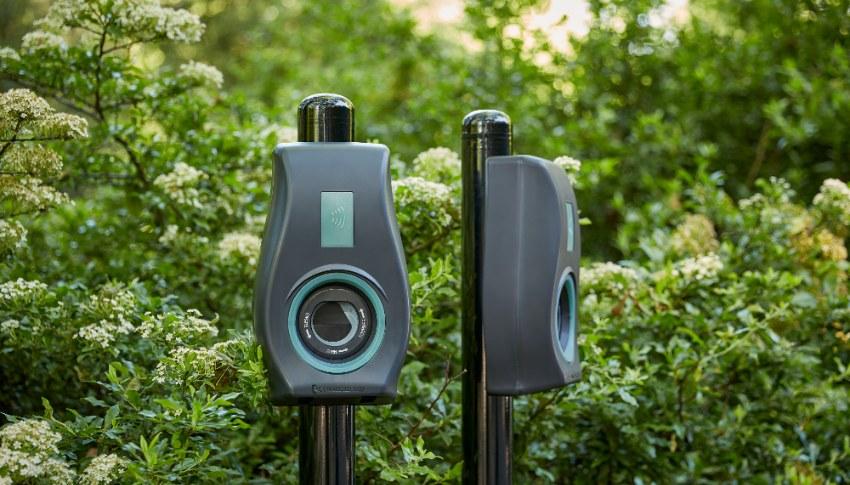

The trial saw 100 Connected Kerb chargers deployed at 17 sites across four local authorities.

“The deployment of smart charging into public charging – to both reduce consumer costs and minimise the impact of charging on the grid – is ground-breaking,” Pateman-Jones continued.

“The Agile Streets trial gives us the opportunity to ensure we get smart charging right, enabling us to take all of the learnings from the trial and get ready to roll out this revolutionary infrastructure.”

Smart metering works by enabling EVs to schedule charging to times when energy prices are cheapest, such as overnight when demand is low or on sunny and windy days when there is an abundance of cheap solar and wind energy. This reduces emissions, takes pressure off the grid at peak times and keeps costs low for drivers. By using Agile Streets and scheduling the time a car needs to be fully charged, drivers will have enough power to drive away when needed.

The chargers used in the Agile Streets project will be handed to the local authorities in each participating region. Connected Kerb plans to continue working on smart charging, with a view to adopting smart EV charging technology across as much of its network as possible.

The Agile Streets project is delivered by a number of companies including Connected Kerb, Samsung Research, the Power Networks Distribution Centre, and Energy Saving Trust. The project was awarded £1.5m by the Department for Business, Energy and Industrial Strategy (BEIS) to deliver the Beyond Off-Street Smart Meter Electric Vehicle Charging programme.

“The provision of convenient and affordable EV charging infrastructure is essential to ensure that electric vehicles are accessible to everyone,” said Tim Anderson, Group Head of Transport at Energy Saving Trust, who was responsible for monitoring and evaluation in the trial.

“This will support the switch to low carbon transport, which in turn is a key part of the UK’s transition to net zero carbon. Energy Saving Trust is proud to be part of this world-first trial, using smart metering technology to enable drivers without the option of charging at home, to take advantage of off-peak tariffs to charge their cars.

“We look forward to seeing the trial rolled out further and the benefits that this will bring.”
